Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | JIAYUAN |
Certification: | CE,ISO,SGS |
Model Number: | YGF16-16-5 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | US $120,000-1,000,000 |
Packaging Details: | wooden boxes |
Delivery Time: | 30 working days |
Supply Ability: | 15 Set/Sets per Month |
Color: | Silver Gray | Type: | Filling Machine |
---|---|---|---|
Condition: | New | Application: | Cooking Oil,honey,vegetable Paste... |
Warranty: | One Year For Free | Material: | Stainless Steel 304 |
After-sale Service Provided: | Engineers Available To Service Machinery Overseas | ||
High Light: | automatic weighing oil bottling machine,SGS edible oil bottle filling machine,SUS304 edible oil bottle packing machine |
Description:

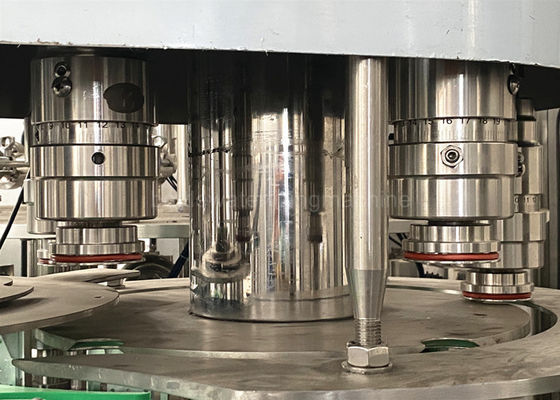

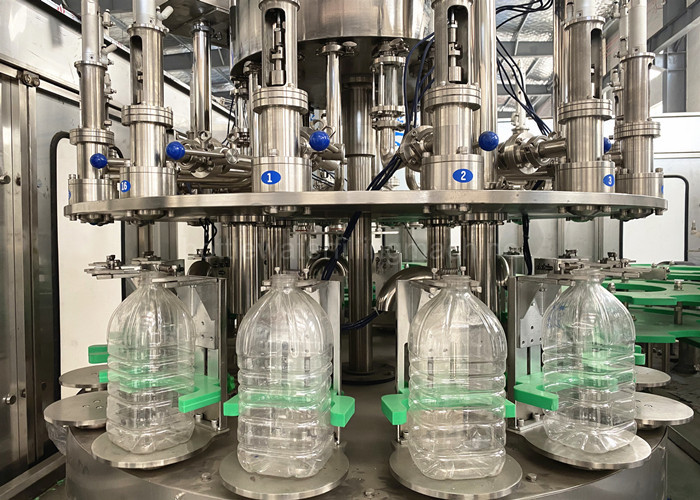

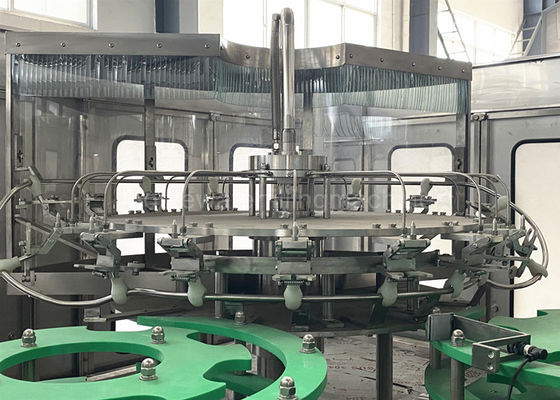

This machine is a new type of gas Rinsing,filling,capping 3 in 1 machine designed and manufactured with foreign advanced technology. The filling valve is manufactured by the imported metering valve technology, with high manufacturing accuracy, accurate filling liquid level, small liquid loss and good stability, which is especially suitable for oil filling; the screw cap system is manufactured by the imported French company technology, with magnetic screw cap, adjustable torque, and equipped with synchronous cover removal screw cap device, with small cover loss.
Features:
Technical parameter:
Model | YGF16-16-5 |
Capacity | 2000BPH |
Bottle size | 200-1000ML |
Rinsing head | 16 |
Filling head | 16 |
Capping head | 5 |
Filling temperature | 18-20℃ |
Gas pressure of rinsing bottle | 0.15~0.25 MPa |
Compressed air: | 0.5~0.6Mpa |
Speed control | AC MOTOR+REDUCER+INVERTER |
Power | 3.68Kw |
Weight | 5500 Kg |
Overall dimensions (L*W*H) |
3250mmX2200mmX2300mm |
